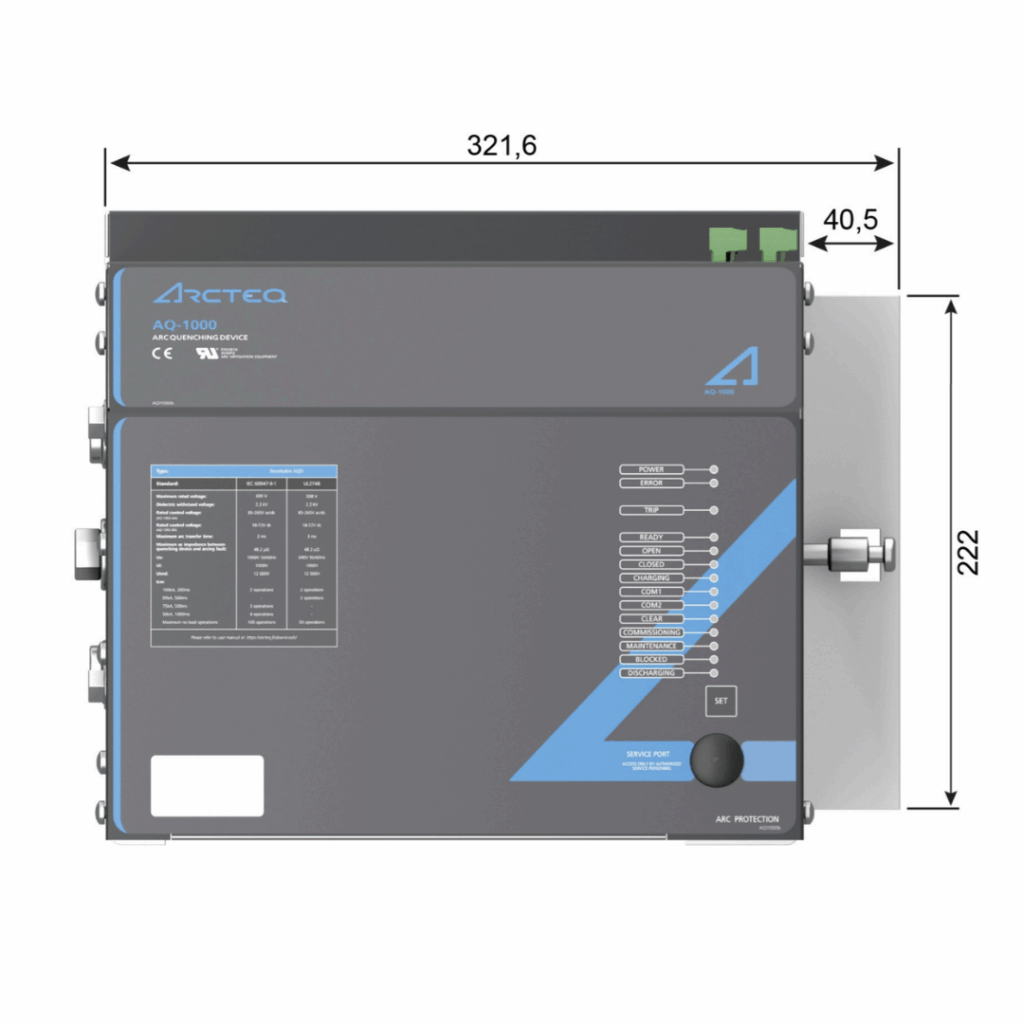

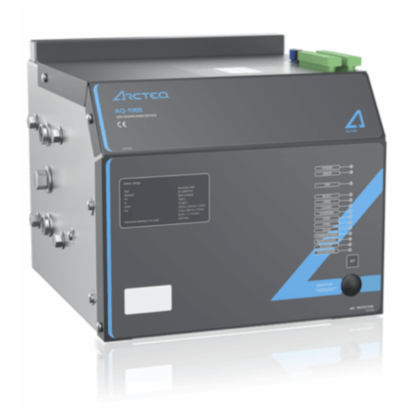

The Arcteq AQ-1000 arc quenching device extinguishes arcing faults in low-voltage systems up to 690 V.

The AQ-1000 system is designed to limit the total arcing time to 4 ms and to minimise – or even eliminate – the thermal and pressure effects of an arc fault. In typical applications this keeps the incident energy below 1 cal/cm² and allows equipment and personnel to remain within safe limits. AQ-1000 is fully resettable, so full system tests can be carried out on-site whenever required.

The Arcteq AQ-1000 arc quenching device is engineered for industrial LV systems where fast fault suppression is essential.

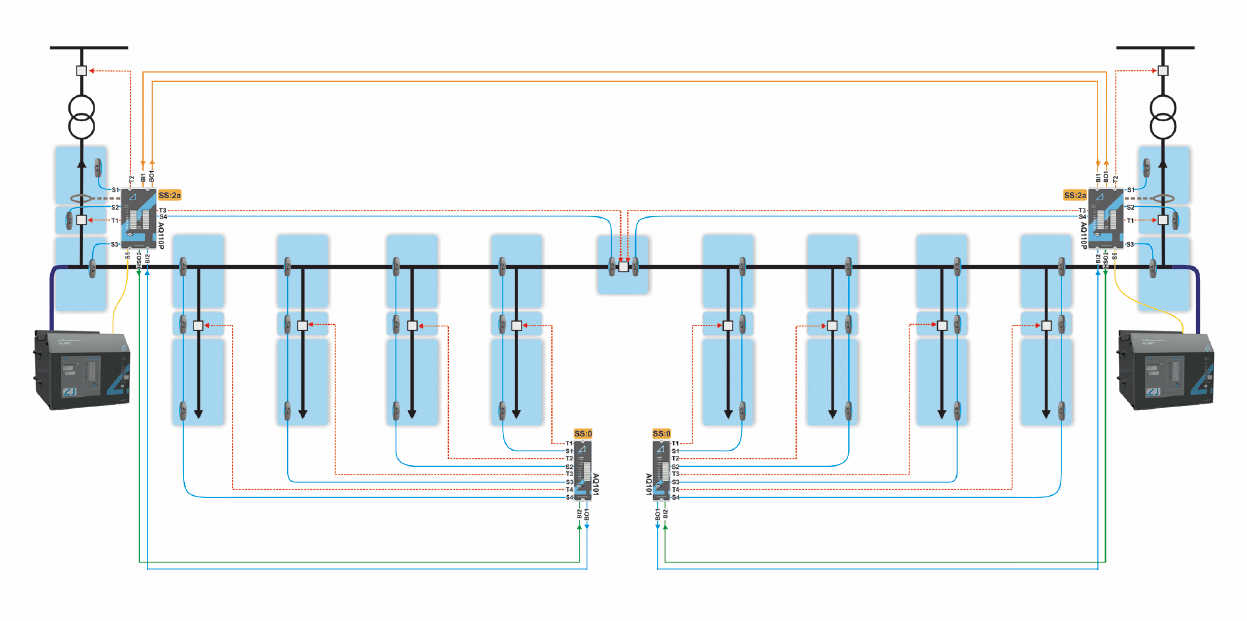

AQ-1000 is used together with the AQ-100 arc protection system. When an AQ-100 series relay detects an arc fault, it simultaneously trips the circuit-breaker(s) feeding the fault and triggers the AQ-1000 arc quenching device. AQ-1000 then creates a low-impedance parallel path for the fault current, rapidly collapsing the arc. The total arcing time of the system is less than 4 milliseconds.

Download: Arcteq AQ-1000 Instruction Manual (PDF)

Key functions of the Arcteq AQ-1000 arc quenching device:

• Arc quenching device for low-voltage systems up to 690 V
• Total system operating time approx. 4 ms; incident energy typically below 1 cal/cm²
• Short-circuit withstand (IEC 60947-9-1 / UL 2748): 100 kA (200 ms), 75 kA (500 ms), 50 kA (1 s)
• Basic insulation level (BIL): 12 kV
• Electric life: 2 operations at 100 kA / 200 ms each
• Mechanical life: 100 operations
• Fully resettable design for repeated on-site testing
• Operates in conjunction with AQ-100 series arc protection relays
• Provides a low-impedance parallel path for fault current to extinguish the arc
• Compatible accessories: AXX001-3, AXX001-5 and AXX001-10 fibre-optic connection cables (3 m, 5 m, 10 m)
