Overview
TSW212 is a managed industrial Layer 2 Ethernet switch featuring selected Layer 3 functions such as static IPv4/IPv6 routing and DHCPv6 client support.

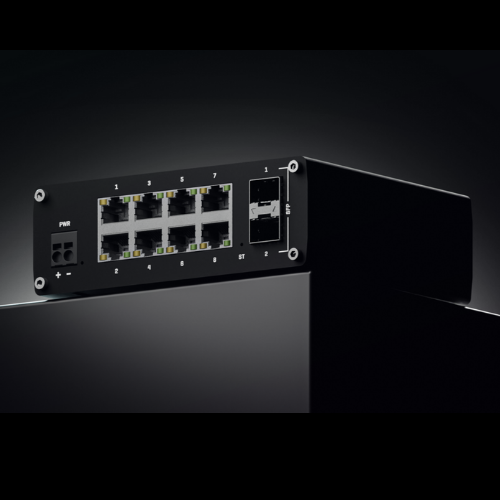

It includes 8 × Gigabit RJ45 and 2 × SFP ports for fibre uplinks, runs TSWOS (Linux/OpenWrt-based) with web interface, configuration profiles, FOTA and RMS integration.
Where it fits
- Control cabinets, automation panels and industrial networks with mixed copper/fibre links.
- Sites requiring L2 switching with basic L3 routing and PROFINET / EtherNet-IP / MRP protocol support.
Key features

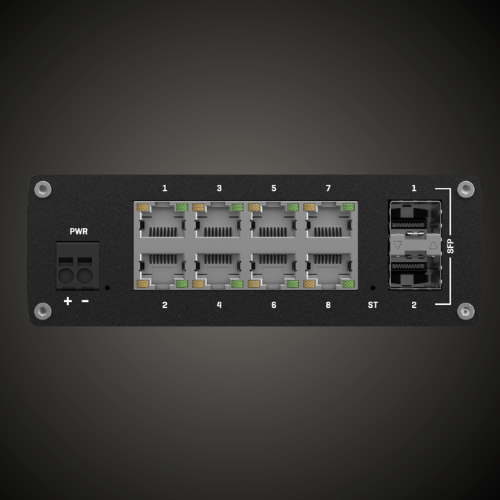

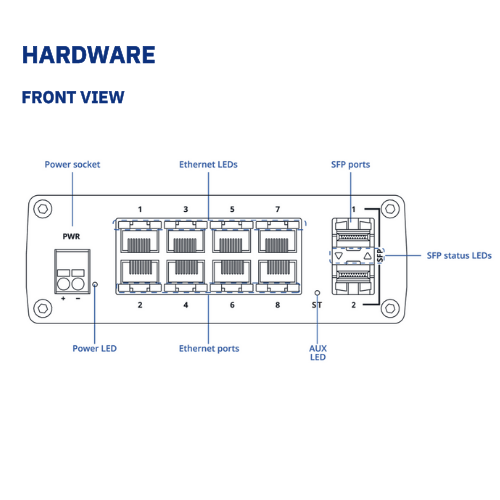

- Ports: 8 × RJ45 10/100/1000 Mbps + 2 × SFP; non-blocking 20 Gbps switching capacity; 8 K MAC table; jumbo frames up to 10,000 bytes.
- L2 / L3: VLAN (802.1Q), STP / RSTP, LLDP, QoS (802.1p / DSCP / TOS), port mirroring, loop protection; IPv4 / IPv6 static routing, DHCP / DHCPv6.
- Industrial protocols: PROFINET (Class B, by order option), EtherNet/IP, MRP (client / manager).
- Security & management: 802.1X, RADIUS / TACACS+, PAM (pre-shared), MAC filtering with block list, SNMP v2 / v3, Web API (beta).
- Diagnostics: cable test, ping, traceroute, nslookup.

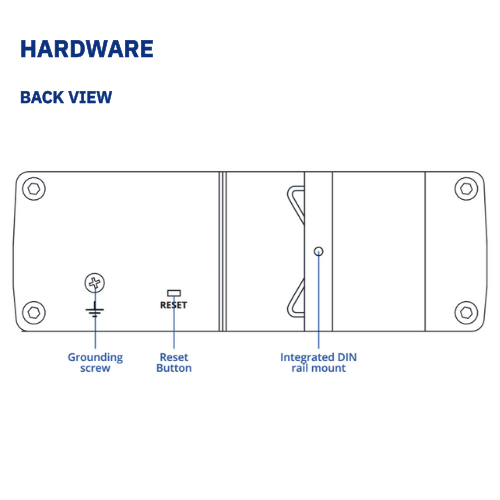

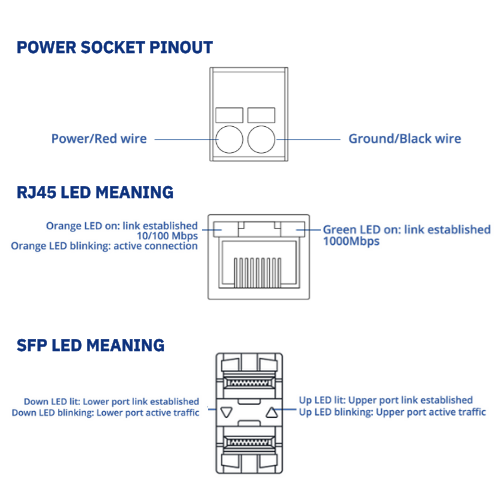

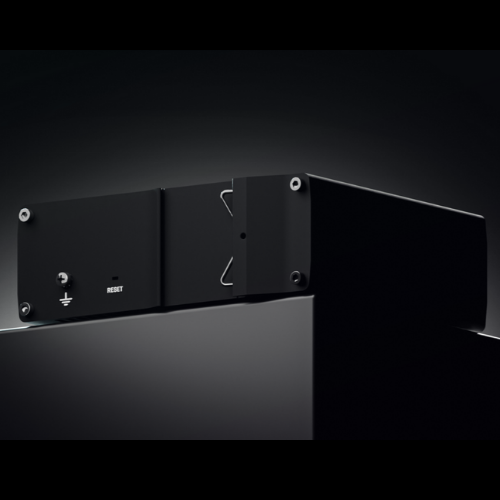

- Hardware: anodised aluminium housing (IP30) with integrated DIN-rail mount; 7–57 V DC power input (2-pin); max consumption 6 W; −40…+75 °C operating range.
- Compliance: CE / UKCA / FCC / IC; EN 55032 / 55035, IEC 61000-4-x; UL 62368-1.
