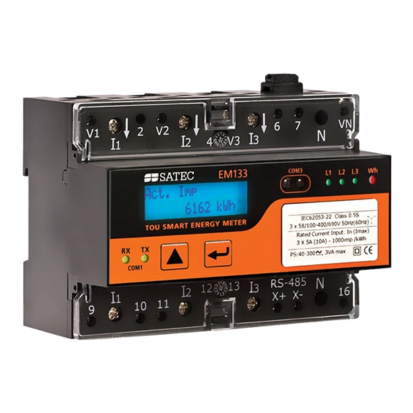

SATEC EM133 is Smart TOU Energy Meter and Transducer, ideal for a wide range of applications such as revenue metering, industrial power monitoring and for interfacing SCADA in utility substations. Based the SATEC PM13X family functionality, it is a version designed as DIN-rail mount, equipped with built-in communication ports, digital I/Os and antitamper enclosures. The EM133 provides the full functionality of the PM130EH PLUS combined with 2 Digital Inputs, 1 Digital Output, IR (Infra Red) communication and battery backup for the real time clock. It is fully compatible with all PM130 PLUS modules.

Energy Meter Accuracy

• Class 0.5S IEC 62053-22

Revenue Meter

• MID certified
• IR (Infra Red) interface
• Anti-tamper design
• Can bill 3 individual single phase clients

Communication & I/O

• Built-in port: RS485, IR (optical)
• Optional ports: Ethernet, Wi-Fi, 3G/4G cellular, PROFIBUS
• Protocols: Modbus, DNP3, IEC 60870-5-101/104
• Built-in I/O: 1 RO, 2 DI
• Modular I/O: up to 16 I/O

Broad-range measurement

• Voltage: 15-828V AC (direct, L-L)
• Frequency: 25, 50, 60, 400 Hz
